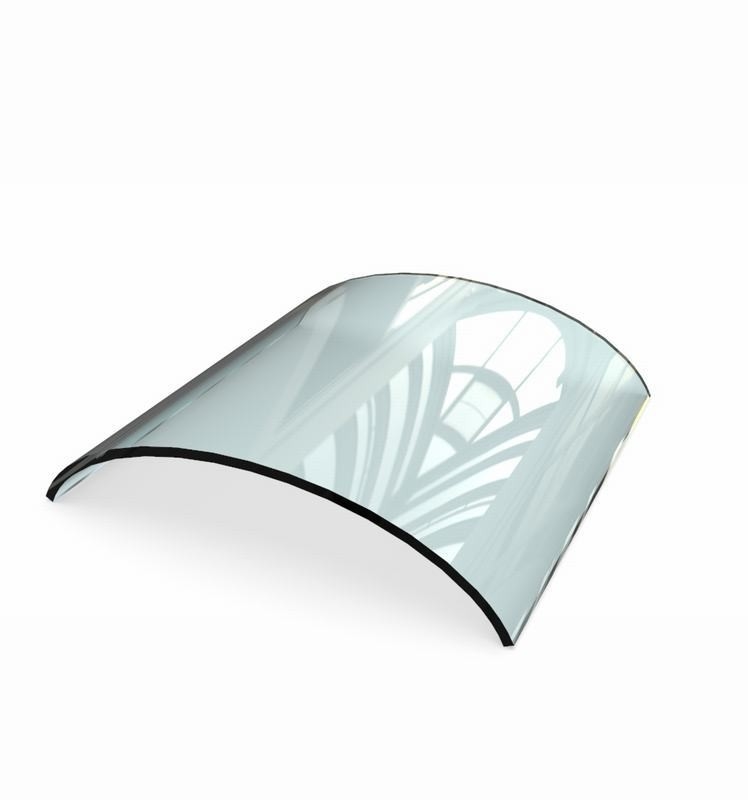

Industrial Hall Glass Balustrade Full Solution for Curved Tempered Safety Glass Panel

Name: Industrial Hall Glass Balustrade Full Solution for Curved Tempered Safety Glass Panel
Brand: QJY
SKU: QJYCG02
Price: 4.38 USD
Availability: InStock
Rating: 4.6 (132 reviews)

Product Details

Place of Origin: China

Brand Name: QJY

Model Number: QJYCG02

Payment & Shipping Terms

Minimum Order Quantity: 100 square meters

Price: $4.38 - $9.80/square meters

Delivery Time: small quantities 7-15 working days after order

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Warranty:	5 Years	After-sale Service:	Return And Replacement, Onsite Inspection, Online Technical Support, Onsite Training, Onsite Installation, Free Spare Parts
Project Solution Capability:	Total Solution For Projects, 3D Model Design, Others, Cross Categories Consolidation, Graphic Design	Application:	Courtyard, Villa, Hotel, Hall
Usage:	Industrial	Thickness:	3mm-12mm

Warranty:	5 Years
After-sale Service:	Return And Replacement, Onsite Inspection, Online Technical Support, Onsite Training, Onsite Installation, Free Spare Parts
Project Solution Capability:	Total Solution For Projects, 3D Model Design, Others, Cross Categories Consolidation, Graphic Design
Application:	Courtyard, Villa, Hotel, Hall
Usage:	Industrial
Thickness:	3mm-12mm

Product Description

Curved tempered glass is cut float glass to cusrom size, grind it and then put the glass into the tempering furnace heating to around 600 degree temperature(the soft temperature point of the glass) and then transefer to the wind jet place. using the curve devices to make the glass in your shape, in the meantime, cool the glass down with the strong wind jet. Thus causing the surface of the glass into compression whereas the inner part still in tension.

Curved tempered glass

is shaped by mould controlled by computer,rapidly and uniformly cooled immediately after it is heated to the designed shape.This in of glass has all the good properties of flat tempered glass.

Flat tempered glass

is a type of glass with even compressive stress on the surface which is made by heating float glass to nearly softening point and then cooling
it down rapidly by air.

Heat-strengthened glass

has the same production method as tempered glass ,to heat the glass to the softening point,then rapidly cooled down.Therefore,tempered variance between intermediate level and superficial level is relatively smaller,stress is relatively smaller.

Product name	Tempered glass/Toughened glass/ESG
Thickness	3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, 22mm
Color	Clear,ultra clear,euro gray,dark gray,F green,dark green,ford blue, dark blue,etc.
Size	Customer demand
Corner	Shape Corner,polished radius,dubbed corner,etc.Corner
Edge	Polished edge,rough edge,pencil edge,flat edge,etc
Miuimum Radius Range	5-6mm R>=450mm; 8mm- 10mmR>=650mm; 1 2mm- 19mmR>=1200
Size range of processing	Min: 450mm H x 450mm W Max: 2000mm H x 900mm W
Tempering Particle Counts	45-80 Particles per 50×50 mm
Diagonal size	1mm
Deep processing	Drilling hole, water jet cutting, frosted, anti slip, silkscreen printing, glass shape processing, etc.
Glass Types Available	1.Clear,ultra clear(low iron) and Tints glass. 2.Non-coated and Coated glass 3.Low-E products(single silver low-e glass, double silver low-e glass,triple silver low-e glass) 4.Acid etched glass 5.Flat and curved tempered glass 6.Heat-strengthened glass 7.PVB/EVA/SGP laminated glass 8.Digital glass

Glass Logo Printing

We can print your logo on the radiator glass cover. Optional colors: White, Black, Semi-transparent.

1. Strictly meet with building codes and safety requirements. 2. Strong enough to withstand high levels of thermal stress. 3. 3-5 times stronger than annealed glass of the same thickness. 4 .Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body. 5. Sizes are produced as per customer request,once tempered,it can not be cut down.All work done must be done before tempering. 6. Accept custom radius, design,all kinds of shape,edge process and cutout.

Based on numerous advantages, curved glass is widely used in areas where required sturdy yet and aesthetics.

1. Edge straightness inspection 2. Radian inspection 3. Size and diagonal inspection 4. Assembly test

Jinyao Glass has detailed production standards and strict quality control inspections. We make sure every piece of your curved shower glass panels is a qualified product and can be perfectly assembled.

1. Individual carton packaging option

Suitable for retail storage of glass tabletops, shower rooms,mirror, glass shelf and other products

Another package with dust-free film

2. Plywood crates packaging option

No fumigation, paper or PE film covering the glass to avoid dirt, with a desiccant inside, to ensure that the glass is dry and not moldy during transportation.

3. L-shaped iron rack packaging option

Welded iron frame, fixed with plastic-steel belt, built-in forklift space, can be quickly loaded and unloaded as a whole, which is convenient for stocking at the construction site.

Q1: What is your product sales policy? A:We support small quantities, mixed batch, OEM customization and customized Logo&Brand.Thank you.

Q2: What's your lead time? A:Normally, small quantities 7-15 working days after order is confirmed, but customized items should be further discussed.Thankyou.

Q3: What kinds of technics do you have? A:We have different kinds of technics to make Glass including Handmade, Machine blown and Machine pressed. As well various Post-processing and Deep Glass Surface Processing.Thank you.

Q4: What is your after-sales service? A:As the glass is fragile, in order to prevent malicious return, if there is any damage, please be sure to contact us within 12 hours of receiving the goods, and provide photos, If it is true, we will send it to you for free in the next order. Please rest assured to purchase.

Q5: How could I get the price? A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price,please email us or contact us in other ways(For example: Whatsapp) so that we can offer you a quote quickly.

Q6: Could I buy samples placing orders? A:Yes.Please feel free to contact us.

Q7: How do you make our business long-term and good relationship? A1:We keep good quality and competitive price to ensure our customers benefit. A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
